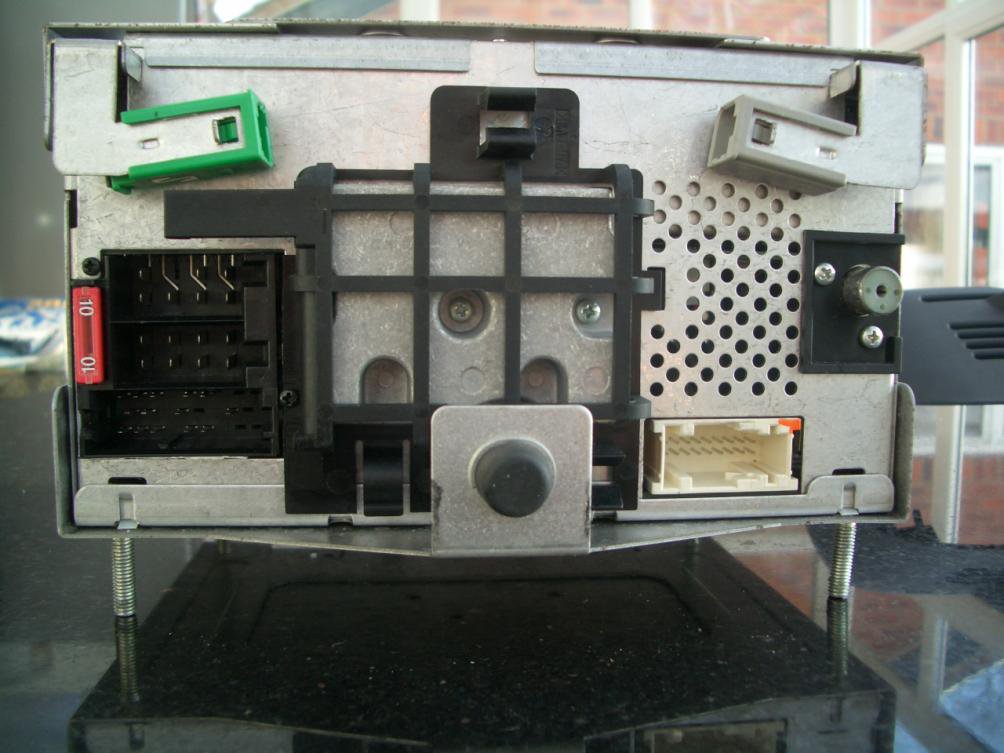

The aerial input is on the right hand side of the back of the NIT. Above that is the grey plug for the GPS antenna and on the other side is the green input for the GSM 'phone. The white connector at the bottom is the CAN BUS connection.
On the left is the power connections, the speaker outputs and at the bottom the CD multi-player input and more telephone inputs (microphone and privacy connector):

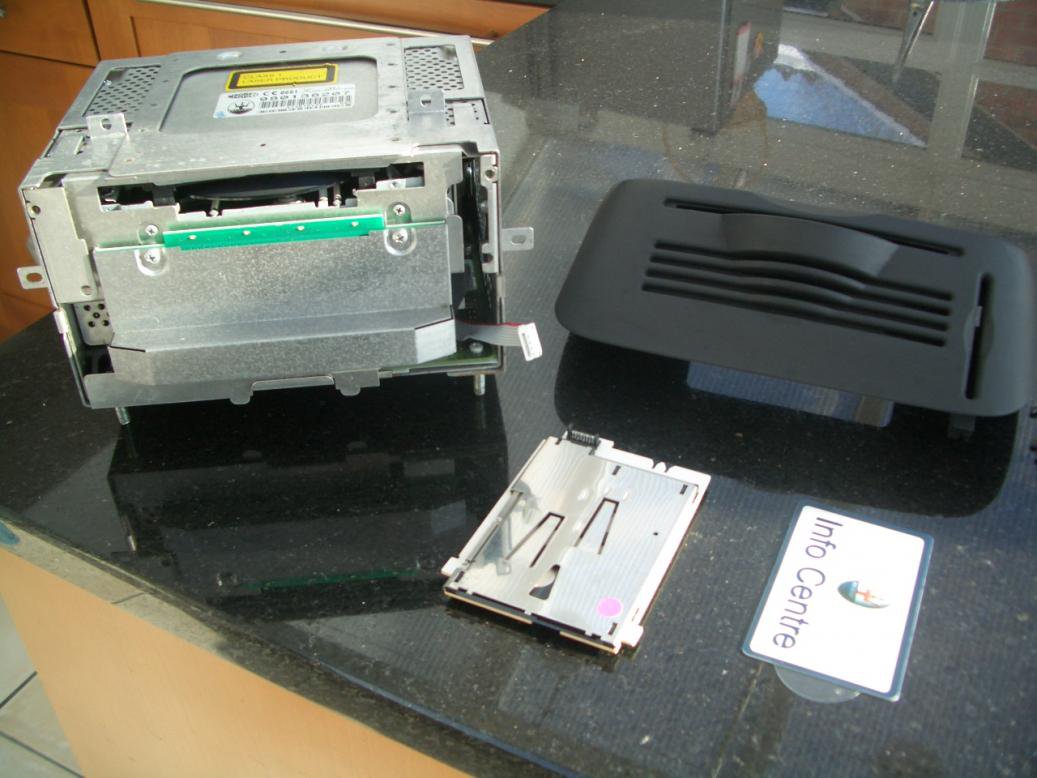

On the underside there is the connector which goes to the dash screen and on the front the single slot cd and the SIM card reader:
On the left is the power connections, the speaker outputs and at the bottom the CD multi-player input and more telephone inputs (microphone and privacy connector):
On the underside there is the connector which goes to the dash screen and on the front the single slot cd and the SIM card reader:
